Water Quality Measuring Instruments
Turbidity Meter Product

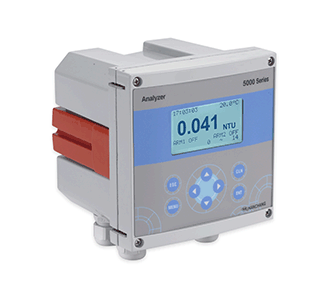

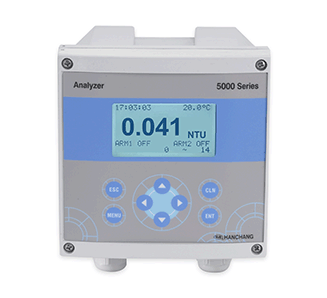

Model Name : TC-5000
Features
· Back light graphic LCD Display, Situation message in Korean language menu
· Displays measured value and temperature simultaneously.
· Can be used for various electrodes as Controller.
· Automatic temperature compensation function is embedded.
· Self-diagnosis function is embedded.
· Self-cleaning function is embedded
· Process control program is embedded.
· Data logger is embedded.
Controller Specification
· Measuring Range : 0 / 2 / 5 / 10 / 100NTU
· Accuracy : ±2% in the range of 0~40NTU, ±5% in the range of 41~100NTU
· Analogue Output : DC 4~20mA
· Power Source : 90~260VAC, 50/60Hz
· Protection : IP66
· Temperature Compensation : 0 ~ 60℃
· Resolution : 0.001NTU
· Repeatability : ±3% of F.S.
· Digital Output : RS232C, RS485
· Power Consumption : 30VA or less
· Size : 144X144X137mm
