Water Quality Measuring Instruments

Oxidation Reduction Potential Meter (ORP) Product

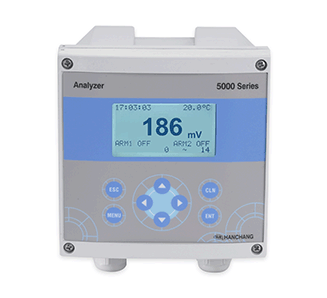

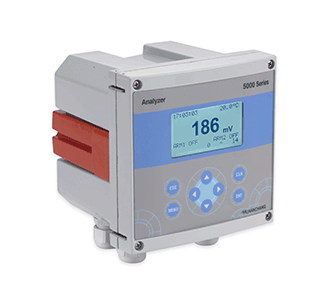

Model Name : OC-5000

Features

· Back light graphic LCD Display, Situation message in Korean language menu
· Displays measured value and temperature simultaneously.
· Can be used for various electrodes as Controller.
· Automatic temperature compensation function is embedded.
· Self-diagnosis function is embedded.
· Self-cleaning function is embedded
· Process control program is embedded.
· Data logger is embedded.

Controller Specification

· Measuring Range : ±700, ±1000, ±200, ±5000mV
· Resolution : 1mV
· Repeatability : ±1mV
· Digital Output : RS232C, RS485
· Power Consumption : 30 VA or less
· Size : 144X144X137mm

· Temperature Compensation : 0 ~ 60℃
· Accuracy : ±1mV
· Analogue Output : DC 4~20mA
· Power Source : 90~260VAC, 50/60Hz
· Protection : IP66
