Water Quality Measuring Instruments
Conductivity meter Product

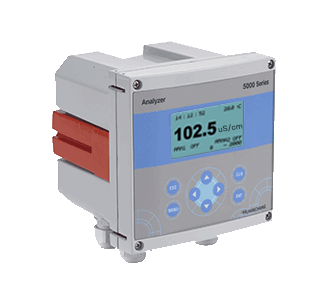

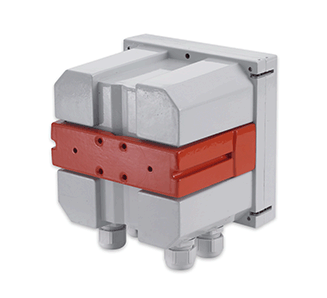

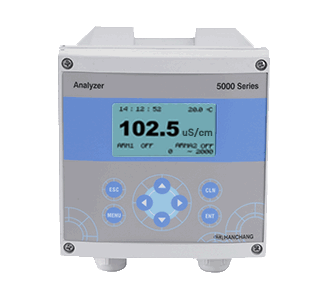

Model Name : CN-5000
Features
· Back light graphic LCD Display, Situation message in Korean language menu
· Displays measured value and temperature simultaneously.
· Can be used for various electrodes as Controller.
· Automatic temperature compensation function is embedded.
· Self-diagnosis function is embedded.
· Self-cleaning function is embedded
· Process control program is embedded.
· Data logger is embedded.
Controller Specification
· Measuring Range : 0~2,000mS/cm, 0~20,000mS/cm
· Resolution : 0.001 , 0.01 , 0.1 , 1uS/cm , 0.001 , 0.1mS/cm
· Repeatability : ±1% of F.S.
· Digital Output : RS232C, RS485
· Power Consumption : 30 VA or less
· Size : 144X144X137mm
· Temperature Compensation : 0 ~ 60℃
· Accuracy : ±1% of F.S.
· Analogue Output : DC 4~20mA
· Power Source : 90~260VAC, 50/60Hz
· Protection : IP66
