Water Quality Measuring Instruments

pH Meter Product

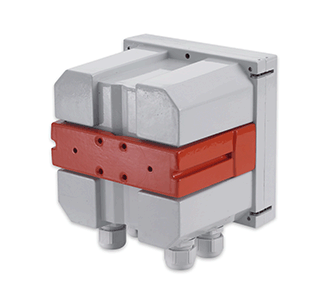

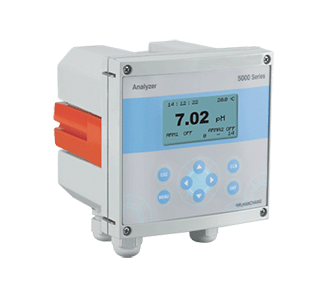

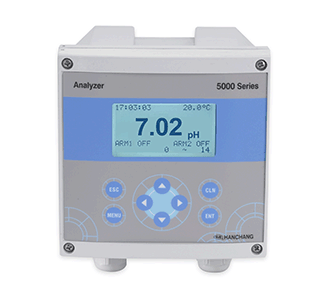

Model Name : PC-5000

Features

· Back light graphic LCD Display, Situation message in Korean language menu
· Displays measured value and temperature simultaneously
· Can be used for various electrodes as Controller
· Automatic temperature compensation function is embedded
· Self-diagnosis function is embedded
· Self-cleaning function is embedded
· Process control program is embedded
· Data logger is embedded

Controller specification

· Measuring range : 0.00 ~ 14.00pH
· Resolution : 0.01pH
· Repeatability : ±0.01pH
· Digital output : RS232C, RS485
· Power consumption : 30VA or less
· Size : 144X144X137mm

· Temperature compensation : 0 ~ 60℃
· Accuracy : ±0.01pH
· Analogue output : DC 4~20mA
· Power source : 90~260VAC, 50/60Hz
· Protection : IP66
